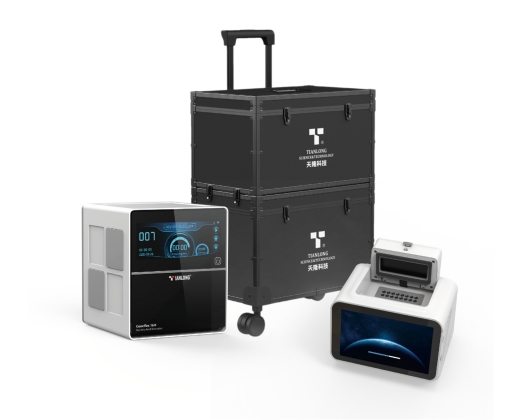

iGenecase 1600 Diagnostics-in-a-Suitcase

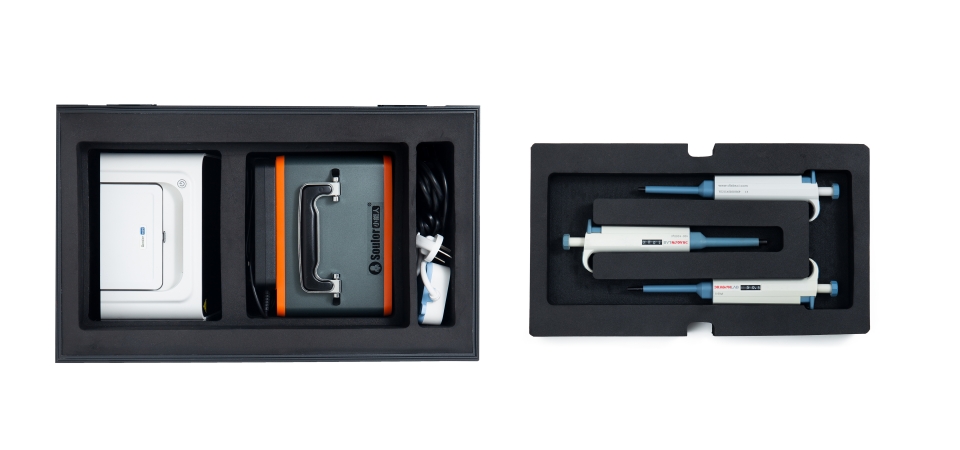

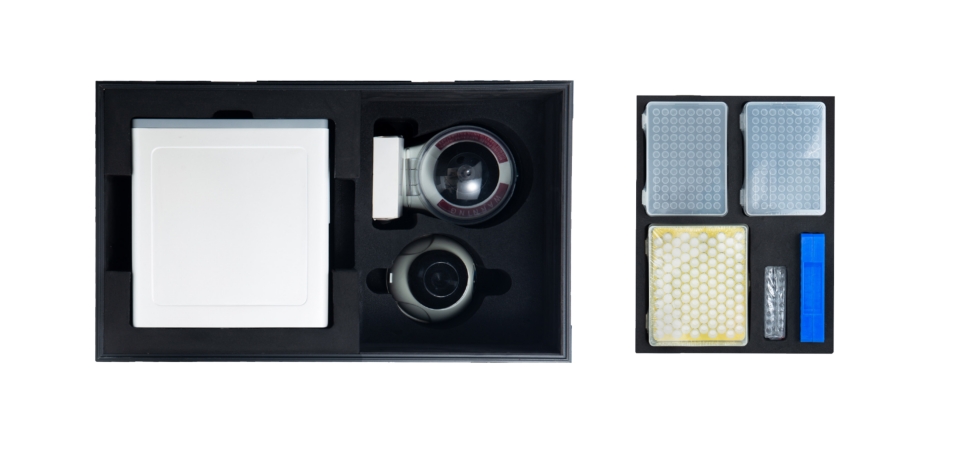

Tianlong suitcase laboratory iGenecase 1600 contains all necessary devices ( GeneFlex Nucleic Acid Extractor, Gentier mini Portable Real-Time PCR System) and compatible consumables for PCR detection. With mobile power supply, professionals can start the experiment anywhere. iGenecase 1600 can be applied in various scenarios including animal disease and infectious disease prevention and control, food safety, scientific research, and other fields. The small, mobile laboratory fitting in a suitcase can deliver test results quickly and accurately,which is ideal for your on-site testing needs.

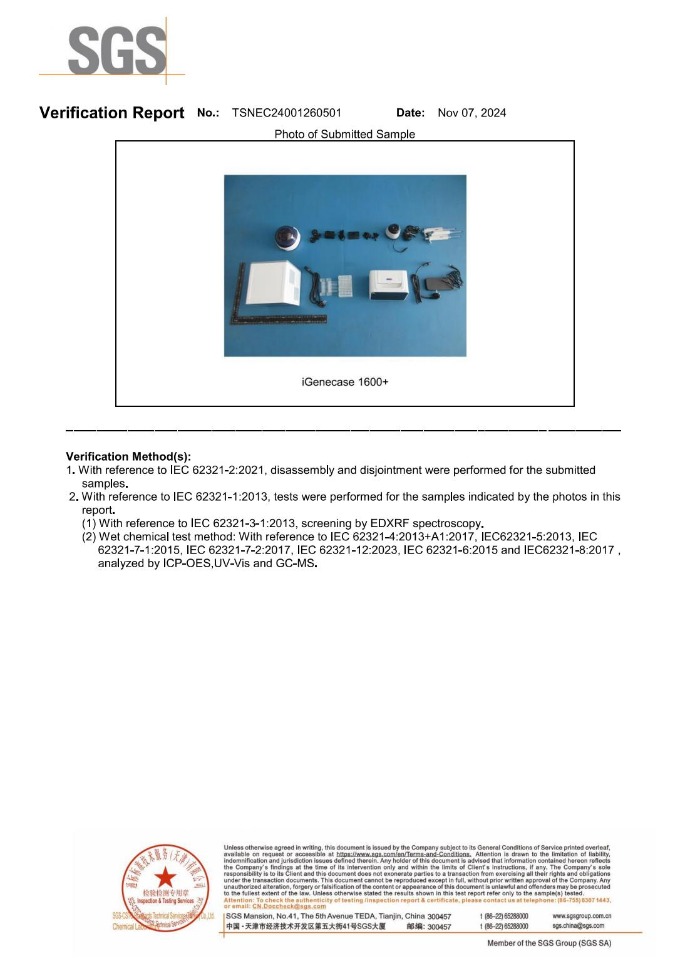

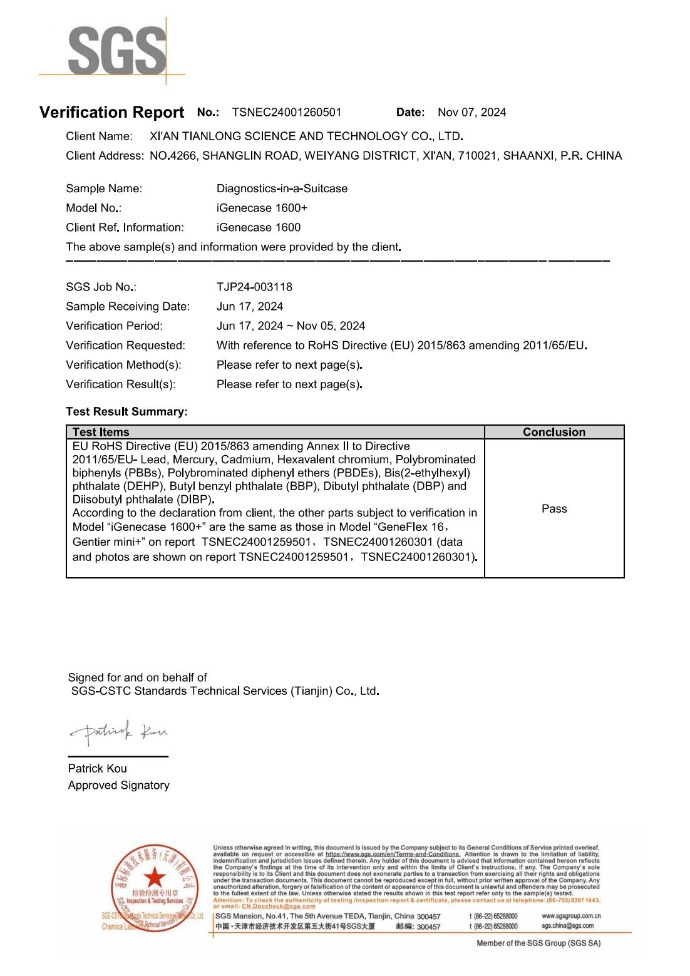

iGenecase 1600/iGenecase 1600+ has completed EU RoHS testing and issued a report that this product meets environmental requirements, and occupational health requirements.
-
-

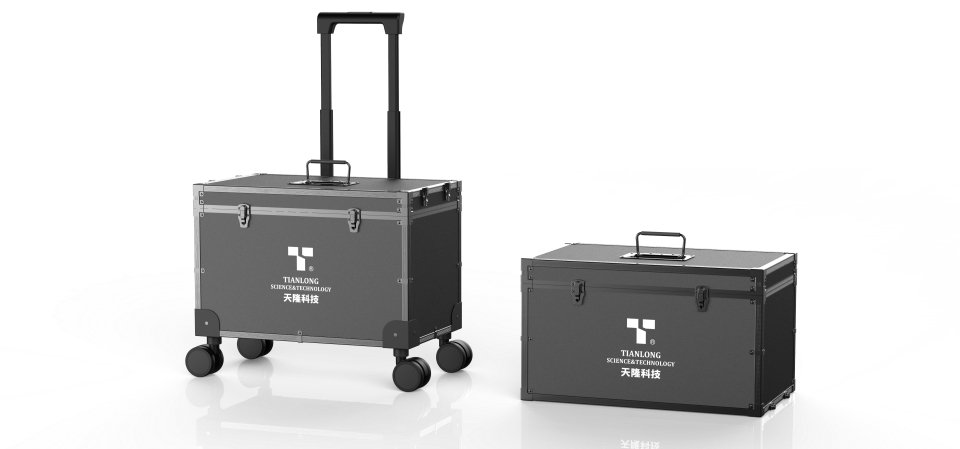

01Portable to meet on-site testing needs
Lab in a suitcase is portable and flexible to meet your on-site testing needs. Various scenarios applications include infectious disease prevention and control, food safety and other fields.
-
02Flexible to take your testing anywhere
With a mobile power supply, professionals can start the experiment anywhere. No need to worry about no power supply outdoors and sudden power off indoors.
-

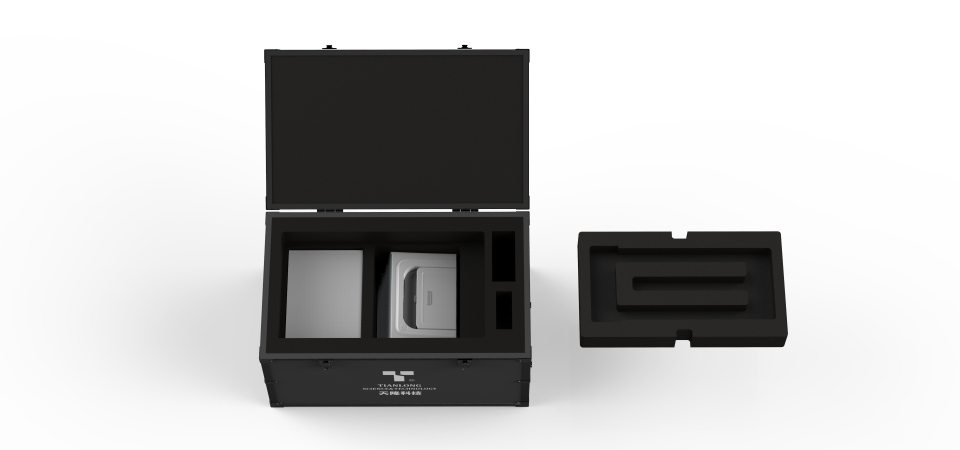

03Lab in a suitcase to be more convenient
The small, mobile laboratory fitting in a suitcase can deliver test results quickly, which is ideal for your on-site testing needs. Crash-proof design can ensure the stability of the suitcase lab.
-
04Highly efficient extraction and detection
1s to complete fluorescence scanning of all wells
15 min to complete sample nucleic acid extraction.
-
05Easy and convenient to start the experiment
1 click to start nucleic acid extraction
3 clicks to complete real-time PCR operations
| Model | GeneFlex 16 |
| Throughput | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Customized 96-deep-well plates, single 6-strip tubes |
| Inter-well Difference | CV≤3% |
| Mixing Method | Rotary mixing |
| Rotary Speed | 100~3000rpm |
| Temperature Control Range | Temperature control separately for lysis and elution. Temperature range from 30°C to 120°C. |
| Temperature Control Accuracy | Heating speed: 4.0±0.2°C/s. Temperature accuracy: ±1.0°C. Temperature uniformity:≤1.0°C. |
| Languages | Chinese/English |
| Protocol Management | Flexible to create, edit and delete protocols |
| Operation Mode | Mode 1: Android systems in smartphones/tablets Mode 2: 6.86 inch full-color LCD screen |
| Automatic Control | Automatic opening and closing of the experiment cabin |
| Reagent Identification | Automatic identification of reagent information and running the assays |
| Mixing Sleeve Monitoring | Real-time monitoring of the mixing sleeves status in experiment |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Disinfection | Ozone + UV disinfection |
| Auto Power-off | Auto power-off after UV disinfection |
| Negative-Pressure Filtration | Negative pressure HEPA filtration module |
| Connection Port Type | USB port |
| Weight | 7.4Kg (net) |
| Instrument Dimensions | 210mm(L)*229mm(W)*242mm(H) |
| Power Supply | AC220V, 50Hz |
| Model | Gentier Mini+ | Gentier Mini |
| Throughput | 1-16 | 16 |
| Fluorescence Channels | 4 | 2 |
| Scanning Time | 1s for all wells fluorescence scanning | |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes | |
| Dye Compatibility | Channel 1: FAM, SYBR GreenⅠ, SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: Texas Red, ROX Channel 4: Cy5 | Channel 1: FAM, SYBR GreenⅠ, LC Green, Eva Green, SYTO 9 Channel 2: HEX, VIC, TET, JOE |
| Heating Rate | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. |
| Cooling Rate | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. |
| Temperature Accuracy | ≤0.1℃ | ≤0.1℃ |
| Temperature Uniformity | ±0.2℃ | |
| Lightsource | High-brightness, long-life, maintenance-free LED light source | High-brightness, long-life, maintenance-free LED light source |
| Detection Duration | Flurescence channel infoxmation acquisition within 1 second for all holes. | |
| Special Temperature Protocol | Conventional PCR, touchdown PCR, long PCR, etc. | Supporting conventional PCR, touchdown PCR, long-range PCR, etc. |
| Hot Lid Temperature | 40℃-110℃ | 40℃-110℃ |
| Control Modes | Mode 1: 7-inch touch-screen of Gentier Mini Mode 2: computer software Mode 3: remote control via Windows tablet | Mode 1: touch-screen of Gentier Mini.with at least 1000 times storage data stand-alone Mode 2: computer software Mode 3: remote control via tablet |
| Key Applications | Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc. | Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc. |
| Display | 7-inch full-color HD LCD capacitive touch screen | |
| Result Analysis | 1: Direct analysis on Gentier Mini and results can be printed directly when connected to a thermal printer; 2: Analysis through PC software | The results can be analyzed directly on Gentier Mini and can be printed out directly when connected to a thermal printer;the results can also be analyzed through PC software depending on your preference |
| Experiment Files | Files can be downloaded by webpage login | |
| Network Connection | Internet interface, USB, WiFi | Internet interface, USB, WiFi |
| Power Failure Protection | Automatically start running experiments after power supply | Instant power failure protection seamless automatic recovery of the experiment when restarted |
| Specifications and Weight | 205mm(L)*156mm(W)*153mm(H)); 3.2kg | 205mm(L)*156mm(W)*153mm(H)); 3.2kg |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes |
| GeneFlex 16 | |
|---|---|
| Throughput | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Customized 96-deep-well plates, single 6-strip tubes |
| Inter-well Difference | CV≤3% |
| Mixing Method | Rotary mixing |
| Rotary Speed | 100~3000rpm |
| Temperature Control Range | Temperature control separately for lysis and elution. Temperature range from 30°C to 120°C. |
| Temperature Control Accuracy | Heating speed: 4.0±0.2°C/s. Temperature accuracy: ±1.0°C. Temperature uniformity:≤1.0°C. |
| Languages | Chinese/English |
| Protocol Management | Flexible to create, edit and delete protocols |
| Operation Mode | Mode 1: Android systems in smartphones/tablets Mode 2: 6.86 inch full-color LCD screen |
| Automatic Control | Automatic opening and closing of the experiment cabin |
| Reagent Identification | Automatic identification of reagent information and running the assays |
| Mixing Sleeve Monitoring | Real-time monitoring of the mixing sleeves status in experiment |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Disinfection | Ozone + UV disinfection |
| Auto Power-off | Auto power-off after UV disinfection |
| Negative-Pressure Filtration | Negative pressure HEPA filtration module |
| Connection Port Type | USB port |
| Weight | 7.4Kg (net) |
| Instrument Dimensions | 210mm(L)*229mm(W)*242mm(H) |
| Power Supply | AC220V, 50Hz |
| Specification | |
|---|---|
| Model | Gentier Mini+ |
| Throughput | 1-16 |
| Fluorescence Channels | 4 |
| Scanning Time | 1s for all wells fluorescence scanning |
| Dye Compatibility | Channel 1: FAM, SYBR GreenⅠ, SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: Texas Red, ROX Channel 4: Cy5 |
| Heating Rate | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. |
| Cooling Rate | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. |
| Temperature Accuracy | ≤0.1℃ |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Special Temperature Protocol | Conventional PCR, touchdown PCR, long PCR, etc. |
| Hot Lid Temperature | 40℃-110℃ |
| Control Modes | Mode 1: 7-inch touch-screen of Gentier Mini Mode 2: computer software Mode 3: remote control via Windows tablet |
| Key Applications | Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc. |
| Result Analysis | 1: Direct analysis on Gentier Mini and results can be printed directly when connected to a thermal printer; 2: Analysis through PC software. |
| Experiment Files | Files can be downloaded by webpage login |
| Network Connection | Internet interface, USB, WiFi |
| Power Failure Protection | Automatically start running experiments after power supply |
| Specifications and Weight | 205mm(L)*156mm(W)*153mm(H)); 3.2kg |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes |
| Gentier Mini | |
|---|---|
| Throughput | 16 |
| Fluorescence Channels | 2 |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes |
| Dye Compatibility | Channel 1: FAM, SYBR GreenⅠ, LC Green, Eva Green, SYTO 9 Channel 2: HEX, VIC, TET, JOE |
| Heating Rate | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. |
| Cooling Rate | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. |
| Temperature Accuracy | ≤0.1℃ |
| Temperature Uniformity | ±0.2℃ |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Detection Duration | Flurescence channel infoxmation acquisition within 1 second for all holes. |
| Special Temperature Protocol | Supporting conventional PCR, touchdown PCR, long-range PCR, etc. |
| Hot Lid Temperature | 40℃-110℃ |
| Control Modes | Mode 1: touch-screen of Gentier Mini.with at least 1000 times storage data stand-alone Mode 2: computer software Mode 3: remote control via tablet |
| Key Applications | Qualitative analysis, absolute quantitative analysis, relative quantitative analysis, endpoint fluorescence analysis, melting curve analysis, and SNP analysis, etc. |
| Display | 7-inch full-color HD LCD capacitive touch screen |
| Result Analysis | The results can be analyzed directly on Gentier Mini and can be printed out directly when connected to a thermal printer;the results can also be analyzed through PC software depending on your preference |
| Network Connection | Internet interface, USB, WiFi |
| Power Failure Protection | Instant power failure protection seamless automatic recovery of the experiment when restarted |
| Specifications and Weight | 205mm(L)*156mm(W)*153mm(H)); 3.2kg |
