Multichannel Fluorescence Quantitative Analyzer Fascan48E

- Multichannel Fluorescence Quantitative Analyzer Fascan48E

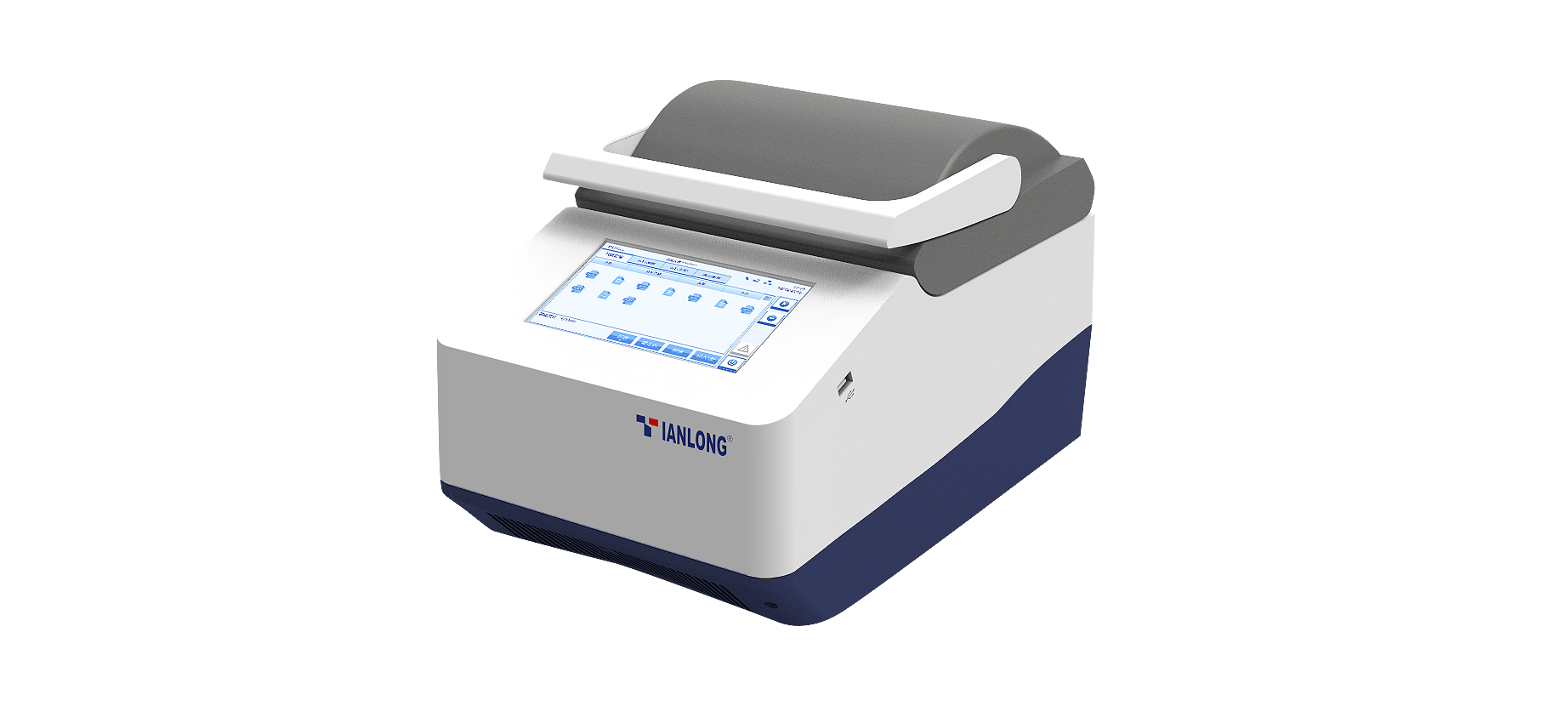

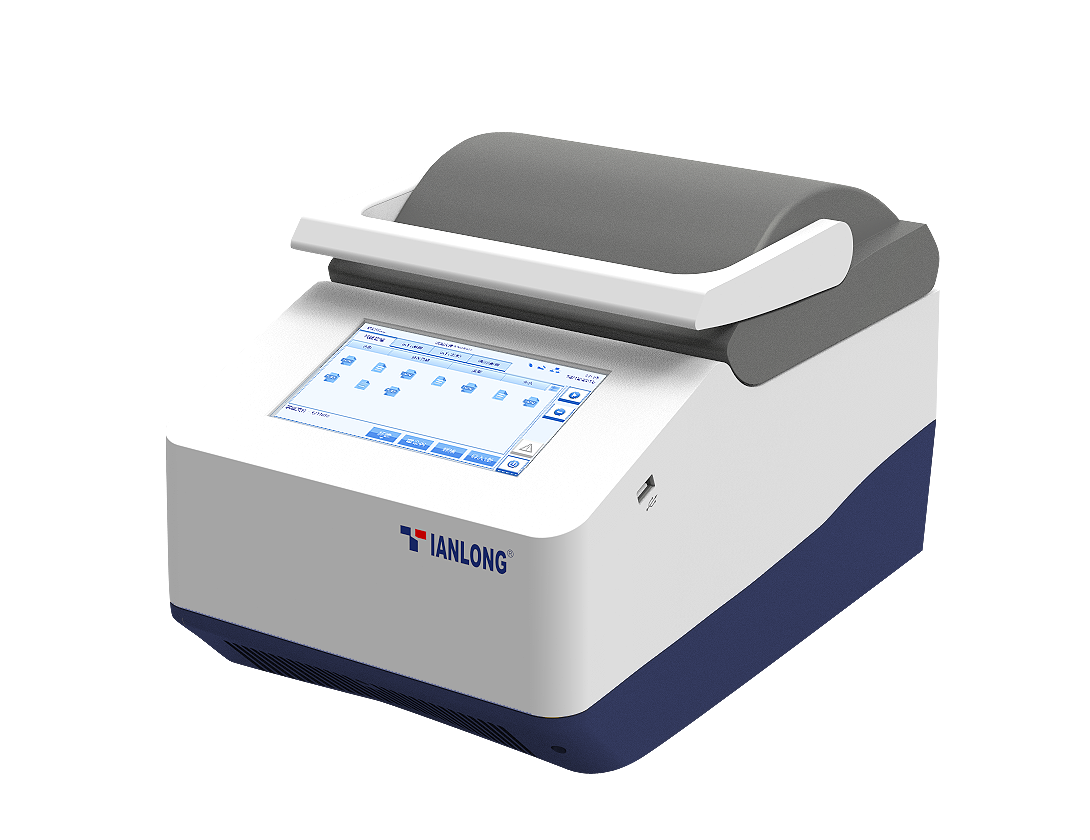

  The Tianlong Fascan 48E Multi-channel fluorescence quantitative analyzer is easy to operate with a 7-inch color LCD touch screen. lt is designed for compatibility with Tianlong pharmacogenomic reagents for personalized medicine. With advanced temperature control system and fluorescence detection technology, Fascan 48E can provide fast and accurate results to help treatment in clinical practice.

Product Manual

Quote

Instant result analysis
Compatible with Tianlong pharmacogenomic reagents to ensure results accuracy; Detection directly after sample collection and report in about 70 min.
48 samples to be scanned in 2s
With 4 fluorescence channels to detect multiple targets:；2s for all 48 wells of fluorescence scanning, which improves efficiency for lab professionals.
Efficient temperature control
Temperature control ranges from 40.0℃~99.0℃ with temperature accuracy≤0.3 ℃(40.0℃~99.0℃)and≤1℃(4.0℃~39.9℃).
Intuitive software design
Intuitive software design and user-friendly interface make it easy to operate even for first-time users, With remarkable software for automatic interpretation of results；Reports are easy to read
User-friendly and convenient
1)Two configurations: 7-inch LCD touchscreen operation or PC software control via connection; 2)Noise-free design with running noises≤65 dB; 3)Power failure protection design.

Specifications

Model	Fascan 48E
Throughput	48
Fluorescence Channels	4
Fluorescence Scanning Time	2s
Dye compatibility	Channel 1: FAM,SYBR Green I,etc. Channel 2: HEX,VIC,TET,JOE,etc. Channel 3: Texas Red,ROX,etc. Channei 4: Cy5,etc.
Lightsource	High-brightness,long-life,maintenance-free LED light source
Detector	photodiode (PD)
Temperature control range	From 4.0℃ to 99.0℃
Temperature Accuracy	≤0.3℃(40.0℃~99.0℃): ≤1℃(4.0℃-39.9℃)
Sample Testing Repeatability	CV≤0.5%
Sample Testing linearity	\|r\|≥0.990
Control Modes	Mode 1: 7.0 inch touch screen Mode 2: PC software
Data Storage and Transmission	Up to 1000 programs can be stored in machine
Power Failure Protection	Automatically start running experiments after power supply
Communication specification	Network port: TCP/IP protocol; Ethernet connection;
Suitable Consumables	0.2mL transparent single tubes 0.2mL transparent 8-strip tubes
Instrument Dimensions	400mm(L)x260mm(W)×260mm(H)
Weight	11KG
Power supply and Power Consumption	AC 220V±10%, 50Hz; 600VA
Running Noise	≤65dB
Certificate	IVDR CE

Fascan 48E
Throughput	48
Fluorescence channels	4
Fluorescence seanning ime	2s
Dye compatibility	Channel 1: FAM,SYBR Green I,etc. Channel 2: HEX,VIC,TET,JOE,etc. Channel 3: Texas Red,ROX,etc. Channei 4: Cy5,etc
Lightsource	High-brightness,long-life,maintenance-free LED light source
Detector	photodiode(PD)
Temperature control range	From 4.0℃ to 99.0℃
Temperature Accuracy	≤0.3℃(40.0℃~99.0℃): ≤1℃(4.0℃-39.9℃)
Sample Testing Repeatability	CV≤0.5%
Sample Testing Linearity	\|r\|≥0.990
Control Modes	Mode 1: 7.0 inch touch screen Mode 2: PC software
Data storage and Transmissio	Up to 1000 programs can be stored in machine
Power Failure Protection	Automatically start running experiments after power supply
Communication specification	Network port: TCP/IP protocol; Ethernet connection;
Suitable Consumables	0.2mL transparent single tubes 0.2mL transparent 8-strip tubes
Instrument Dimensions	400mm(L)x260mm(W)×260mm(H)
weight	11KG
Power supply and Power consumption	AC 220V±10%, 50Hz; 600VA
Running Noise	≤65dB
Certificate	IVDR CE
