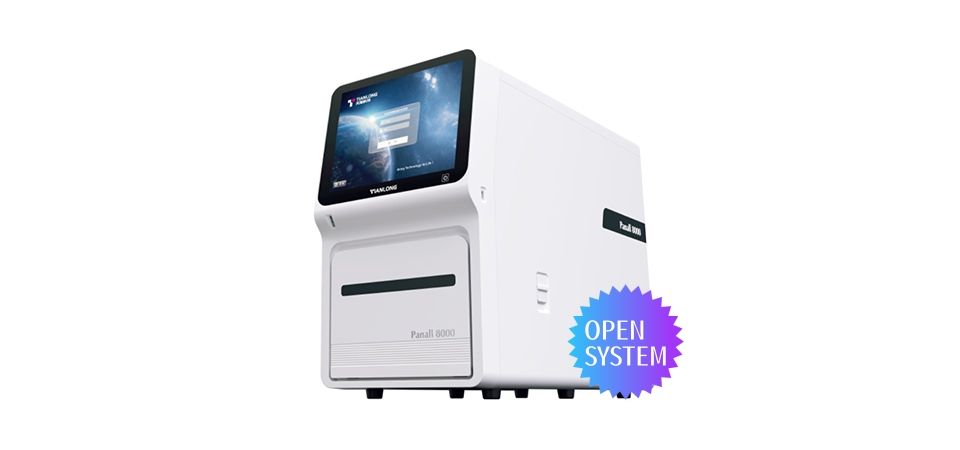

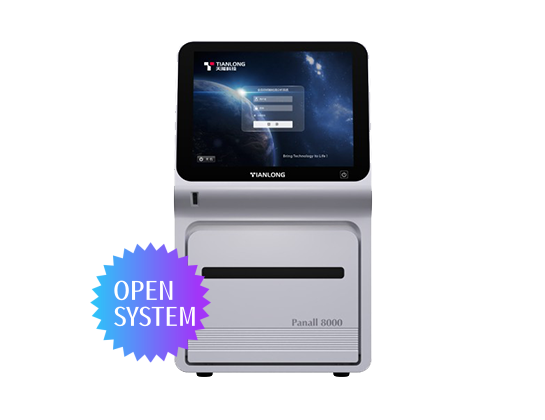

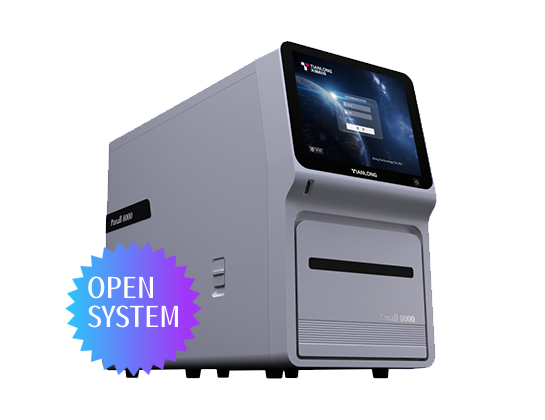

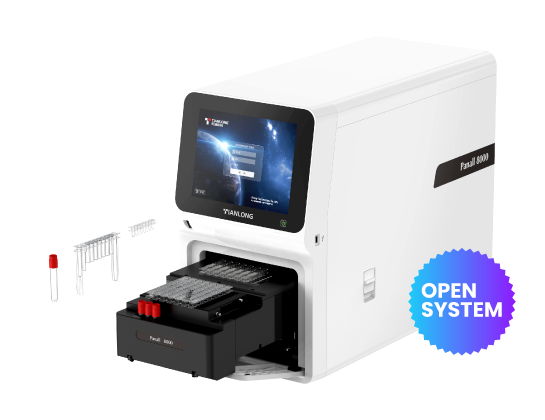

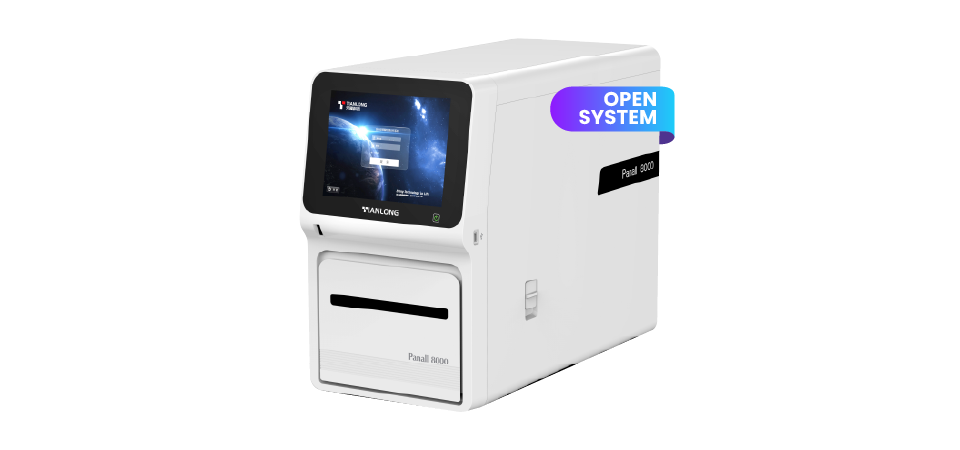

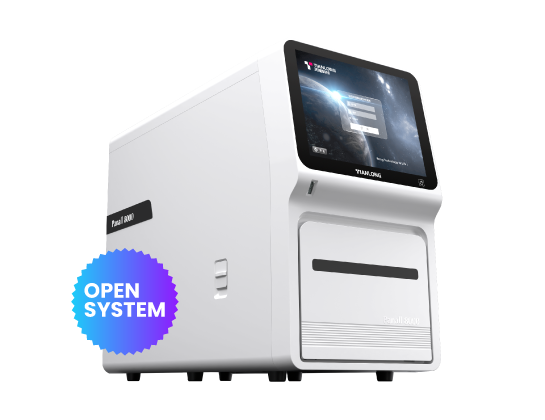

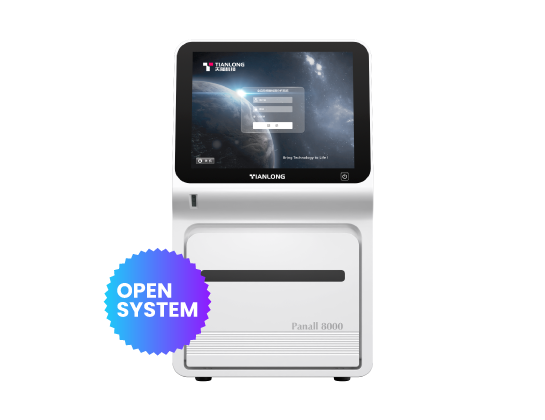

    • Panall 8000 All-In-One Molecular Diagnosis System--Open System

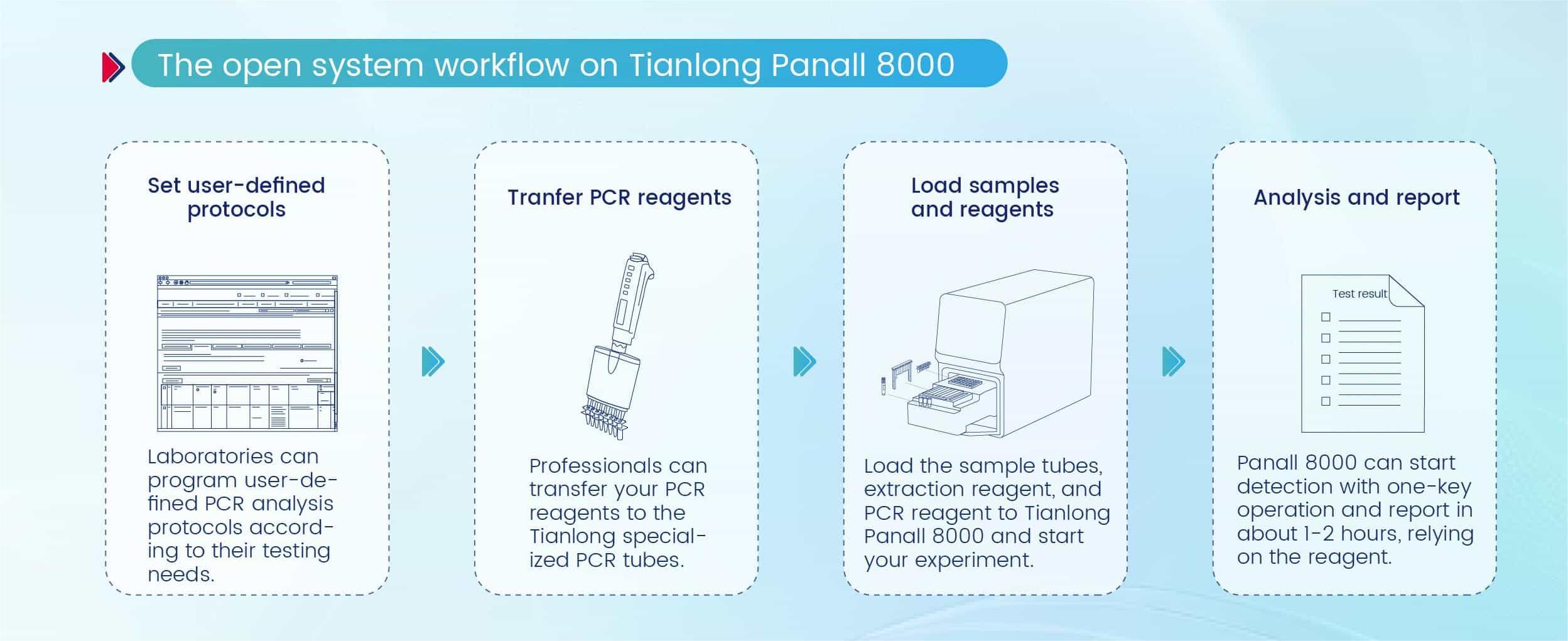

      Tianlong Panall 8000 is an open system that enables laboratories to program user-defined PCR analysis protocols. Laboratories can use user-defined protocols in addition to those developed by Tianlong. The simple and efficient design of the Tianlong Panall 8000 allows you to test a wide range of sample types and meet emerging diagnostic requirements through customized reagents. Tianlong intends to work with our partners to bring more new tests to the Panall 8000 for detection of a broad range of disease categories.


    • 2_fuben.png
    • 3_fuben.png
    • 4_fuben.png
Specifications
ModelOpen System Panall 8000
Sample Throughput1~8 samples at the same time
Pipetting Range20μL ~250μL
Detection time1~2 hours,relying on the reagent
Channel and Available FluoresceinChannel 1: FAM, SYBR Green I, etc.
Channel 2: VIC, HEX, TET, JOE, etc.
Channel 3: ROX, Texas Red, etc.
Channel 4: Cy5, etc.
Dimension750mm(L) × 350mm (W) × 600mm (H)
Weight80Kg
Pipetting Performance

20μL≤V<40μL: accuracy:A5.0%,repeatability:CV3.0%

40μL≤V<100μL: accuracy: A3.0%,repeatability: CV1.5%

V≥100μL: accuracy:A1.0%,repeatability:CV1.0%

Extraction Heating Rate

Average heating rate: 1.5℃/s

Extraction Temperature Accuracy

1.0℃

PCR Heating Rate

Average heating rate: 4.5℃/s

Maximum heating rate: 6.1℃/s

PCR Cooling Rate

Average cooling rate: 3.5'℃/s

Maximum cooling rate: 5.0℃/s

PCR Temperature Accuracy

0.1%

Sample Testing Linearity and  Repeatabilit

Linear correlation: /r/≥ 0.998

Repeatability: CV ≤1.5%

Information Management

Sample information: with scanner inside

Panall 8000 can scan and record the sample information

Reagent information: visual system can automatically identify

the kit information and run the corresponding program

Minimized contamination

Directional exhaust & negative pressure system

HEPA fltration

UV disinfection

Shortest fixed path for sample operation

Data storage

1000 experiment files can be stored

Language

Chinese and English

Power supply and Power Consumption

AC 100~240V,50/60Hz:1200VA

Communication specification

Internet Port: TCP/lP protocol, Ethernet connection

USB Port: USB 2.0

Open System Panall 8000
Sample Throughput1~8 samples at the same time
Pipetting Range20μL ~250μL
Detection time1~2 hours,relying on the reagent
Channel and Available FluoresceinChannel 1: FAM, SYBR Green I, etc.
Channel 2: VIC, HEX, TET, JOE, etc.
Channel 3: ROX, Texas Red, etc.
Channel 4: Cy5, etc.
Dimension750mm(L) × 350mm (W) × 600mm (H)
Weight80Kg

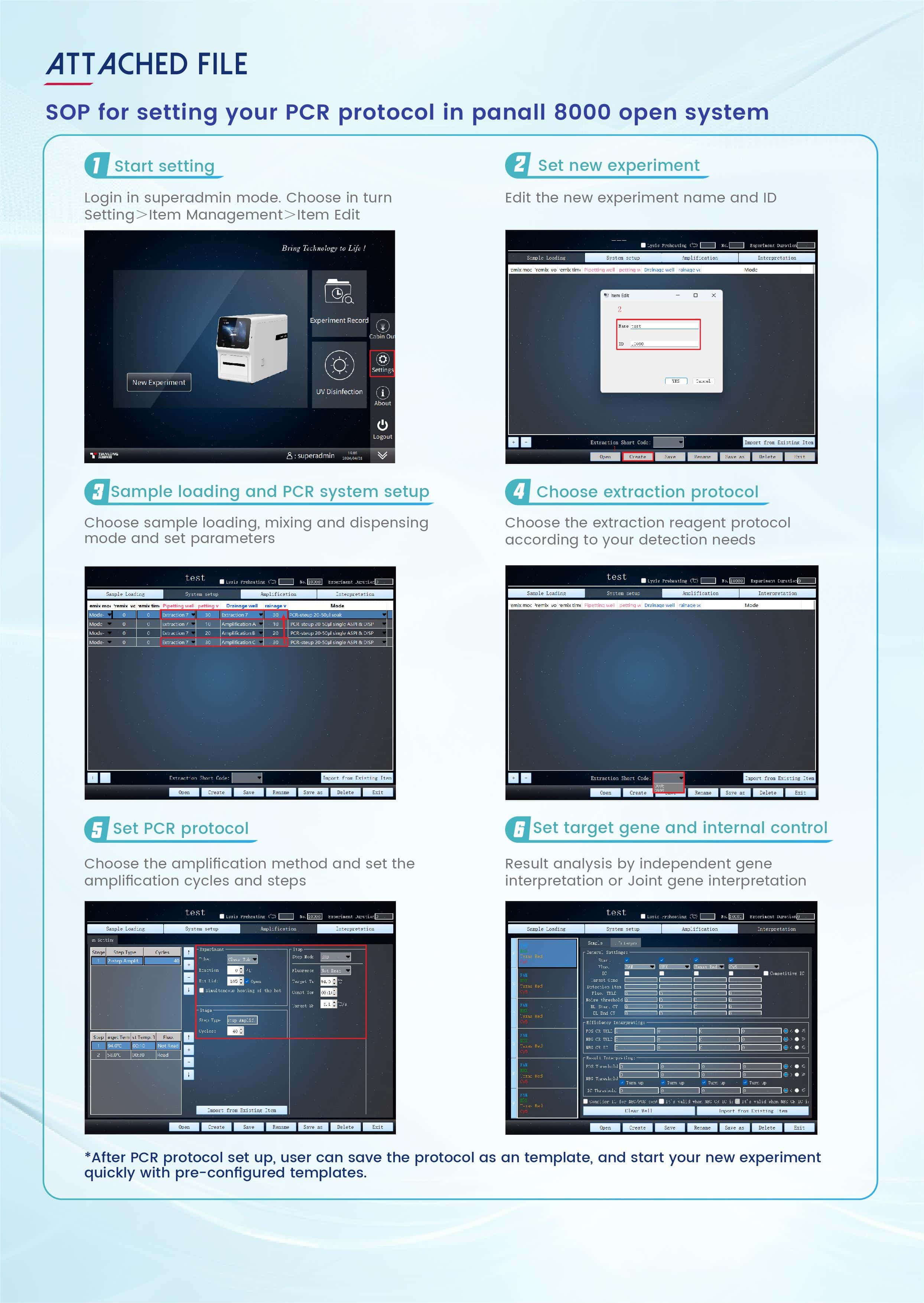

21--Open system for Panall 8000 All-in-one molecular diagnosis system-V1-20240408 (3)(1).jpg
