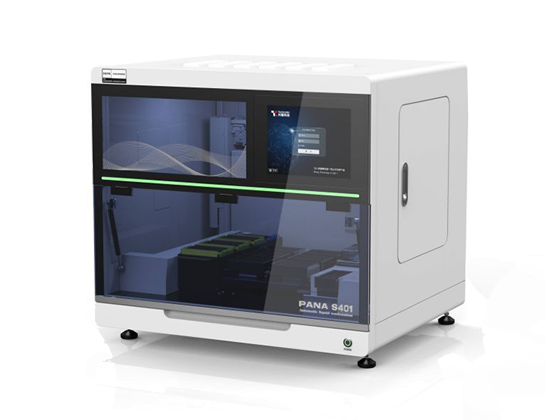

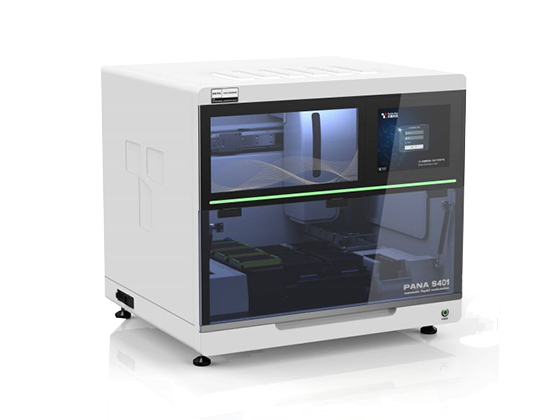

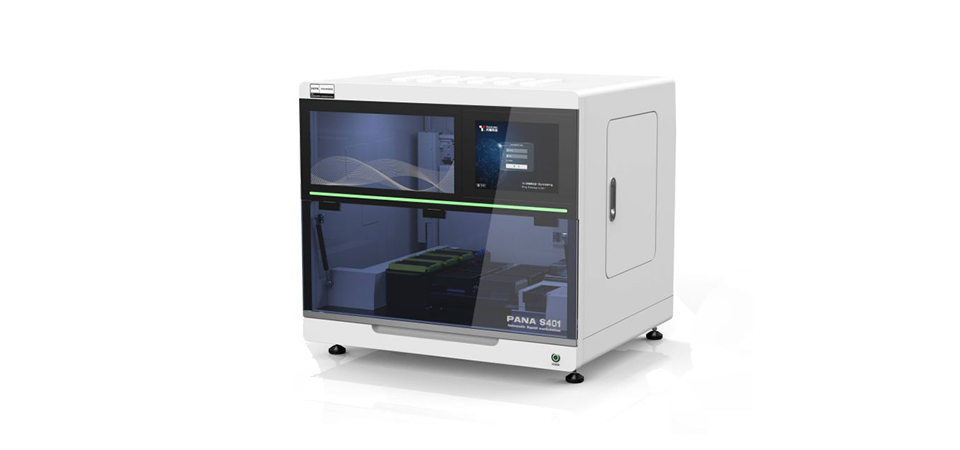

PANA S401 Automated Liquid Handling System

- PANA S401 Automated Liquid Handling System

  Tianlong Automated Liquid Handling System -PANA S401 is designed as an important tool for PCR setup, which automates tedious, error-prone manual tasks and provides consistent sample mixing and excellent pipetting performance to standardize your results. Tianlong PANA S401 Automated Liquid Handling System together with the automated nucleic acid ex-tractor and real-time PCR system, a fully automated, high-throughput, and standardized process of nucleic acid detection can be realized in your lab.

Product Manual

Product Video

Quote

Precise PCR Setup: Automated PCR setup,4 channel , up to 768 samples per setup
Optimized efficiency and standardized procedures: Provide consistent sample mixing and excellent pipetting performance to standardize your results
Highly compatible with various PCR kits: Compatible with regular PCR tubes, PCR strip tubes and PCR plates (up to 384- well x 2)
Excellent anti-contamination measures: Minimized contamination measures like directional exhaust with HEPA filters, internal negative pressure system
User-friendly: Starting preparation programs with just one click, multiple setups for different tests in one run

Specifications

Model	PANA S401
Sample Loading Channels	4 loading channels
Throughput	96 samples, up to 768 samples per one go
Pipetting Volume	1-1000μL
Tip Volume	5-50 μL, 50-1000μL
Performance	Below 15μL: accuracy: A≤2%, repeatability: CV≤3.0% 15μL-50μL: accuracy: A ≤1.5%, repeatability: CV≤1.5% Above 50μL: accuracy: A≤1.0%, repeatability: CV≤1.2%
Liquid Level Detection	Pressure-sensing level detection; Aspiration with the liquid level to ensure accuracy
Compatible Consumables	Compatible with 0.1mL/0.2mL 8-tube strips, 96-well and 384-well PCR plates
Operating System	Windows 10 Pro Edition, bilingual interface in Chinese/English
Connectivity	USB port, RS232 port
Overall Size	860mm(L)x733mm(W)x746mm(H)
Instrument Weight	100kg (net)
Operating Environment	Temperature: 15°C-35°C, humidity:≤70%
Power Supply	AC 220V, 50Hz
