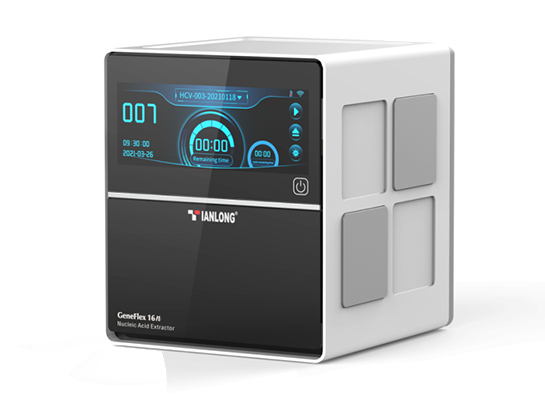

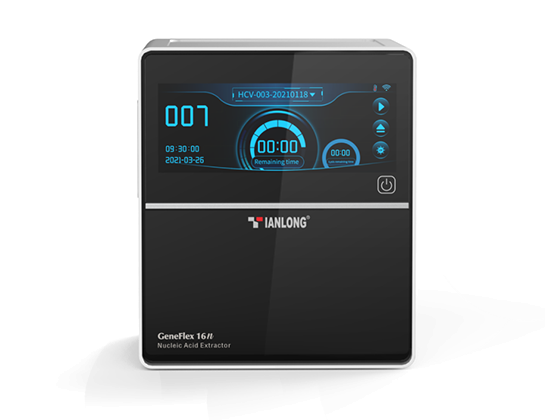

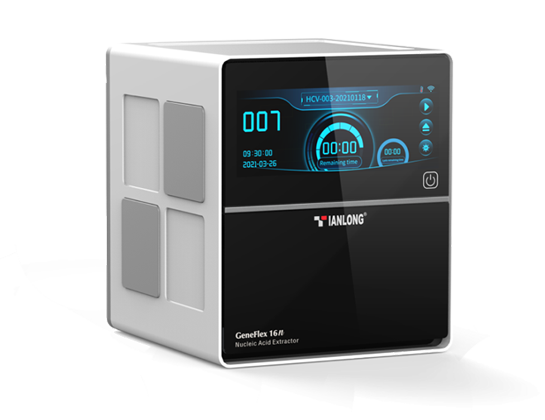

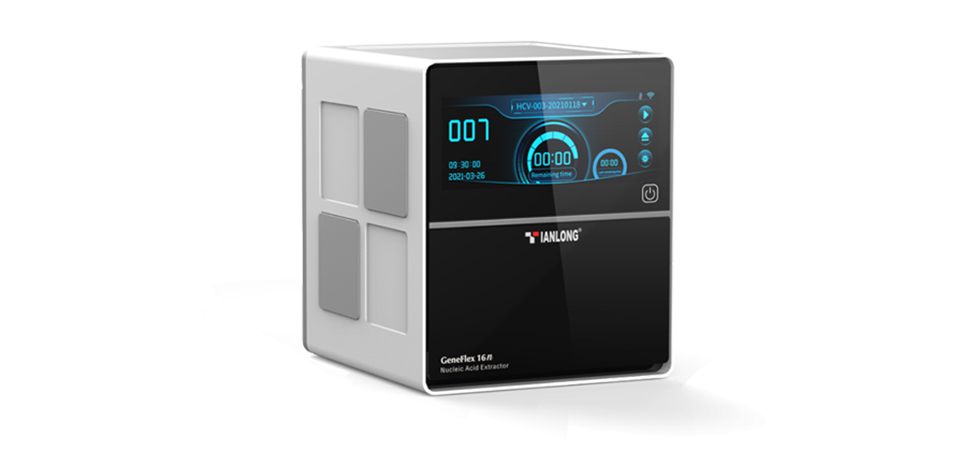

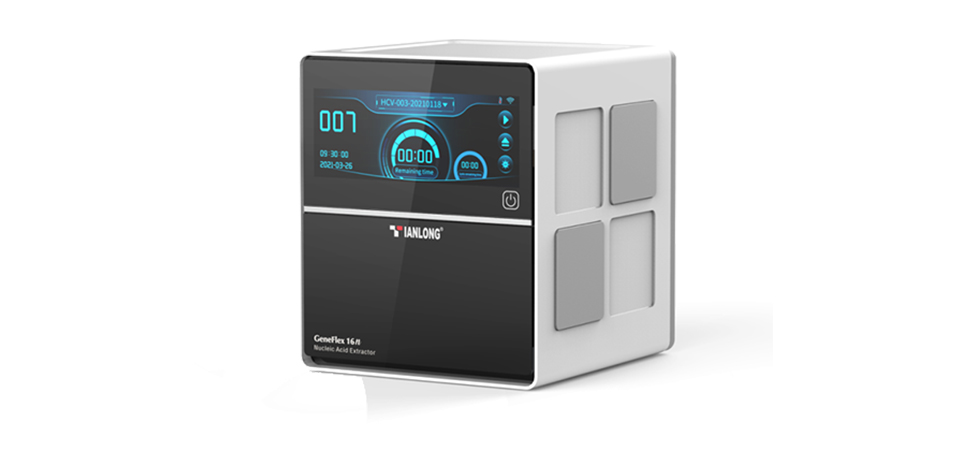

GeneFlex Nucleic Acid Extractor
GeneFlex Automatic Nucleic Acid Extractor is a compact and flexible automatic nucleic acid extractor designed with rotary mixing technology(RMT). GeneFlex can flexibly compose 16 x n different throughputs to meet the needs of simultaneous extraction for different projects without interfering with each other. Apart from its excellent performance, GeneFlex has also won the German Red Dot Design Award 2021 for its user-friendly design. With flexible throughput and independent extraction module, GeneFlex can be your ideal choice for faster and immediate testing tasks.

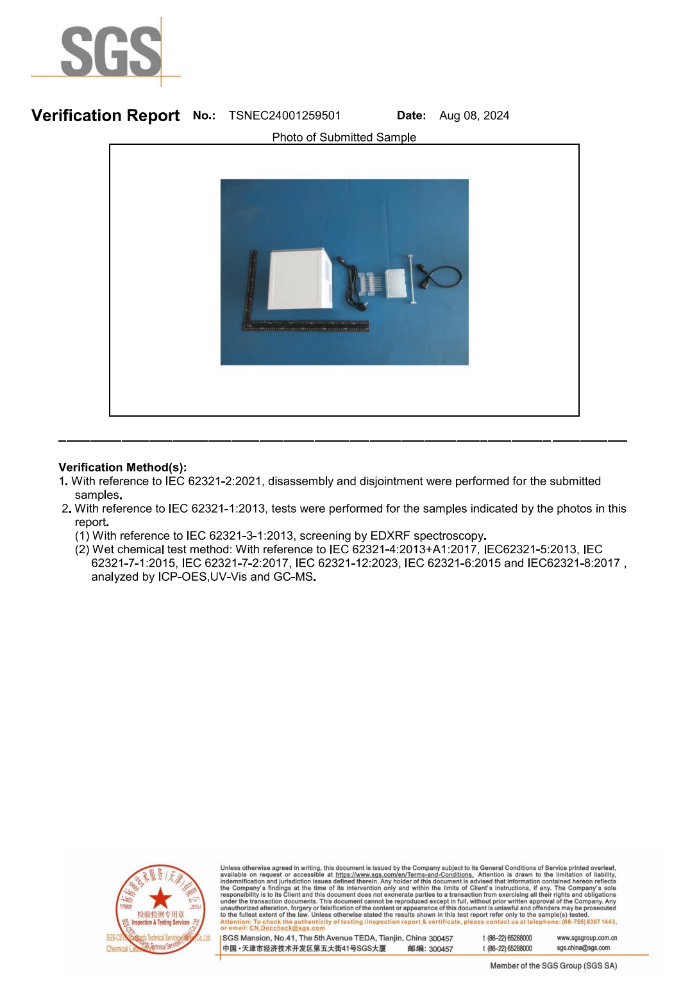

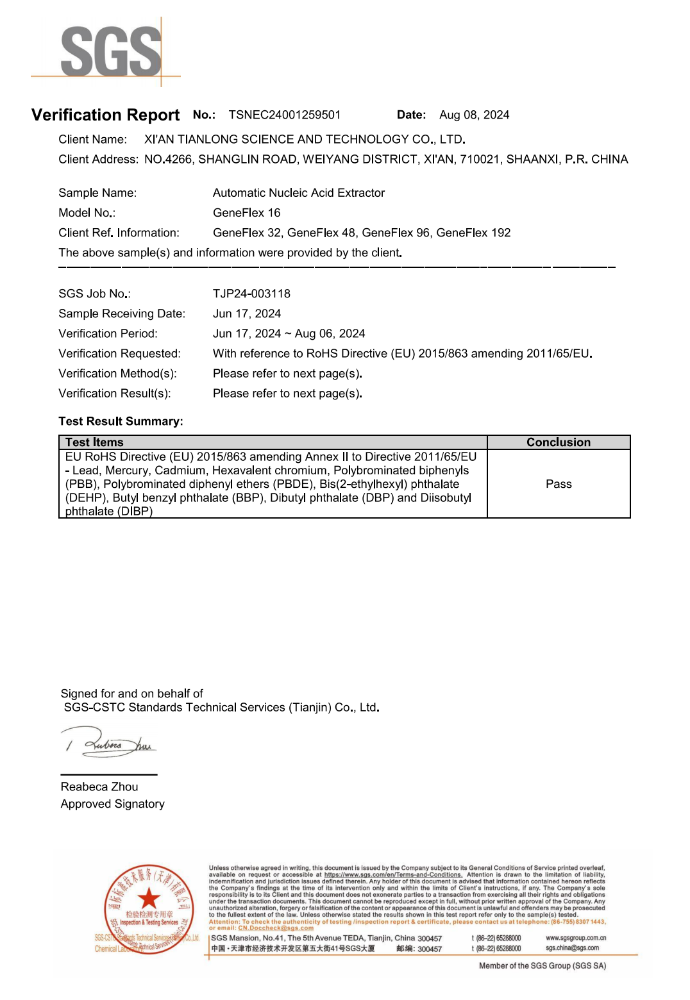

GeneFlex has completed EU RoHS testing and issued a report that this product meets environmental requirements, and occupational health requirements.
-
-
01

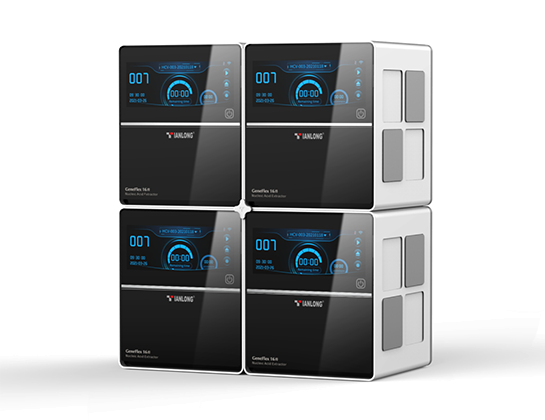

Highly flexible for your needs: GeneFlex can flexibly compose 16 x n different throughput to meet the needs of simultaneous nucleic acid extraction without interfering with each other. With an independent extraction module, GeneFlex can realize your different but immediate testing needs from various applications.
Automated workflow and remote upgrade: Automatic identification of reagent protocols and position of mixing sleeves; Remote upgrade and maintenance of instruments and reagent programs
Easy to start experiment anywhere: With mobile power, GeneFlex nucleic acid extraction system can work anywhere to meet different scenario testing needs.
-
02
Minimized contamination measures:
● UV lamp
● Internal negative pressure
● HEPA filtration
● Rotary mixing to reduce aerosols
● Biosafety cabinet compatibility
User-friendly and convenient:
● 6.86-inch touch screen
● Smart device control through Wi-Fi
● Automatic UV disinfection
● Noise-free operation
| Model | GeneFlex 16 |
| Throughput | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Customized 96-deep-well plates, single 6-strip tubes |
| Inter-well Difference | CV≤3% |
| Mixing Method | Rotary mixing |
| Rotary Speed | 100~3000rpm |
| Temperature Control Range | Temperature control separately for lysis and elution. Temperature range from 30°C to 120°C. |
| Temperature Control Accuracy | Heating speed: 4.0±0.2°C/s. Temperature accuracy: ±1.0°C. Temperature uniformity:≤1.0°C. |
| Languages | Chinese/English |
| Protocol Management | Flexible to create, edit and delete protocols |
| Operation Mode | Mode 1: Android systems in smartphones/tablets Mode 2: 6.86 inch full-color LCD screen |
| Automatic Control | Automatic opening and closing of the experiment cabin |
| Reagent Identification | Automatic identification of reagent information and running the assays |
| Mixing Sleeve Monitoring | Real-time monitoring of the mixing sleeves status in experiment |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Disinfection | Ozone + UV disinfection |
| Auto Power-off | Auto power-off after UV disinfection |
| Negative-Pressure Filtration | Negative pressure HEPA filtration module |
| Connection Port Type | USB port |
| Weight | 7.4Kg (net) |
| Instrument Dimensions | 210mm(L)*229mm(W)*242mm(H) |
| Power Supply | AC220V, 50Hz |
| Certificate | IVDR CE |
| GeneFlex 16 | |
|---|---|
| Throughput | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Customized 96-deep-well plates, single 6-strip tubes |
| Inter-well Difference | CV≤3% |
| Mixing Method | Rotary mixing |
| Rotary Speed | 100~3000rpm |
| Temperature Control Range | Temperature control separately for lysis and elution. Temperature range from 30°C to 120°C. |
| Temperature Control Accuracy | Heating speed: 4.0±0.2°C/s. Temperature accuracy: ±1.0°C. Temperature uniformity:≤1.0°C. |
| Languages | Chinese/English |
| Protocol Management | Flexible to create, edit and delete protocols |
| Operation Mode | Mode 1: Android systems in smartphones/tablets Mode 2: 6.86 inch full-color LCD screen |
| Automatic Control | Automatic opening and closing of the experiment cabin |
| Reagent Identification | Automatic identification of reagent information and running the assays |
| Mixing Sleeve Monitoring | Real-time monitoring of the mixing sleeves status in experiment |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Disinfection | Ozone + UV disinfection |
| Auto Power-off | Auto power-off after UV disinfection |
| Negative-Pressure Filtration | Negative pressure HEPA filtration module |
| Connection Port Type | USB port |
| Weight | 7.4Kg (net) |
| Instrument Dimensions | 210mm(L)*229mm(W)*242mm(H) |
| Power Supply | AC220V, 50Hz |
| Certificate | IVDR CE |
