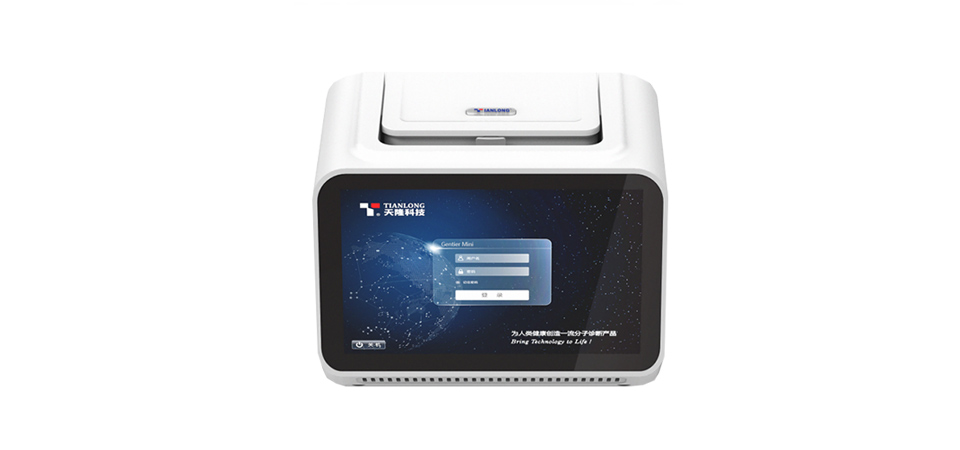

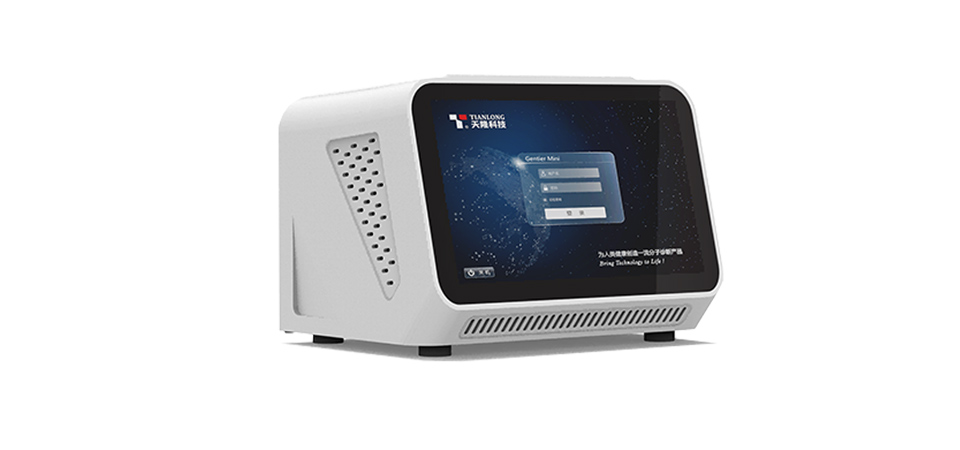

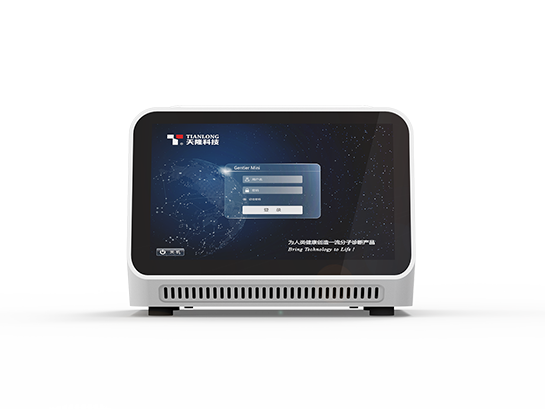

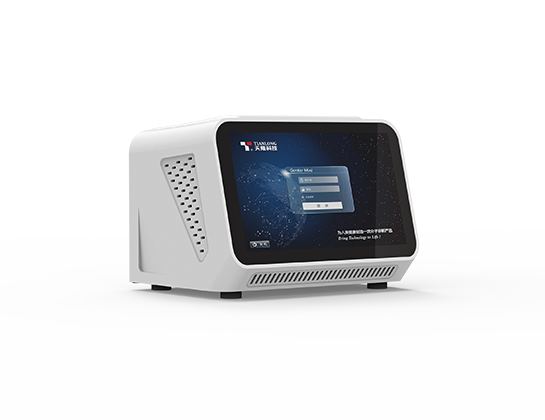

Gentier mini Portable Real-Time PCR System
Real time PCR refers to a method developed based on the traditional PCR to monitor the amplification of specific DNA sequences with continuous fluorescence measurement. Based on TIANLONG's years of application-oriented R&D, Gentier Mini Real-Time PCR System is developed and launched to meet the increasing needs for on-site and rapid testing. This product is compact and portable, easy to use, high efficiency in real-time PCR testing with accurate temperature control, allowing real-time PCR tests out of your labs for all types of fields for your applications.

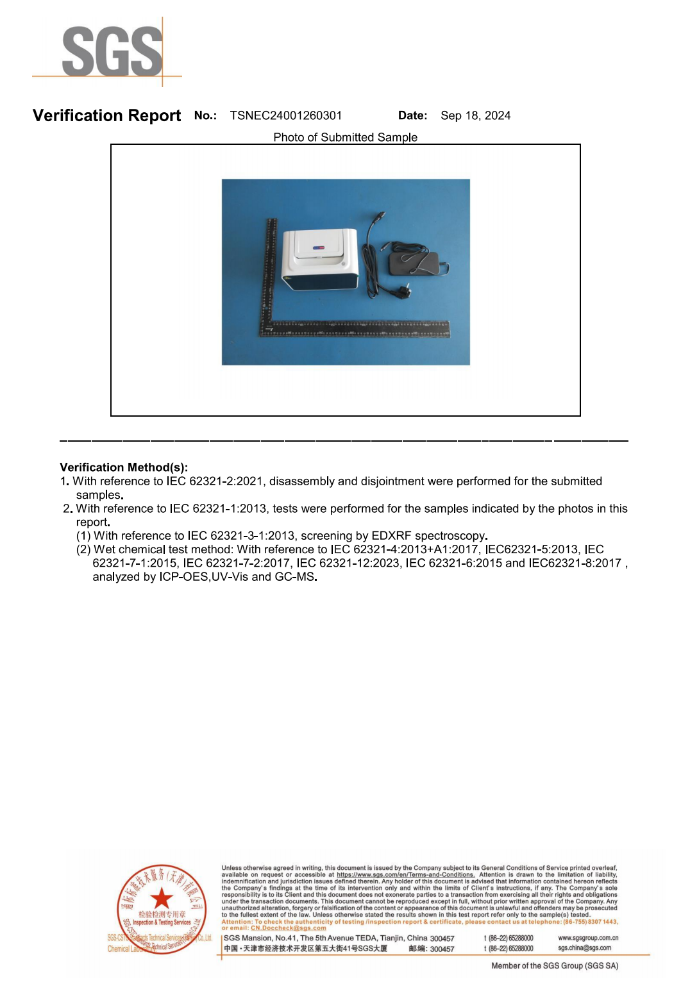

Gentier Mini has completed EU RoHS testing and issued a report that this product meets environmental requirements, and occupational health requirements.
-
-
01
Portable and convenient: Gentier Mini real time PCR analyser takes up little space in the laboratory and can be moved easily to different locations without the need to recalibrate the fluorescence detection system after moving.
1s for 16 wells fluorescence scanning: With 2 fluorescence channels, Gentier Mini can complete all 16 wells fluorescence scanning within 1s, which improves efficiency for lab professionals.
Various control modes:
Mode 1:standalone control with 7-inch touch-screen;
Mode 2:computer software control;
Mode 3: remote control via tablet
-
02
Powerful software analysis:Gentier Mini portable PCR system offers multiple functions including qualitative analysis, absolute quantitative analysis, relative quantitative analysis, SNP analysis, etc.
Instant result analysis:
Mode1: direct analysis on Gentier Mini and results can be printed directly when connected to a thermal printer;
Mode 2: analysis through PC software.
Always online: Various ways to stay online: Wifi, USB and internet interface

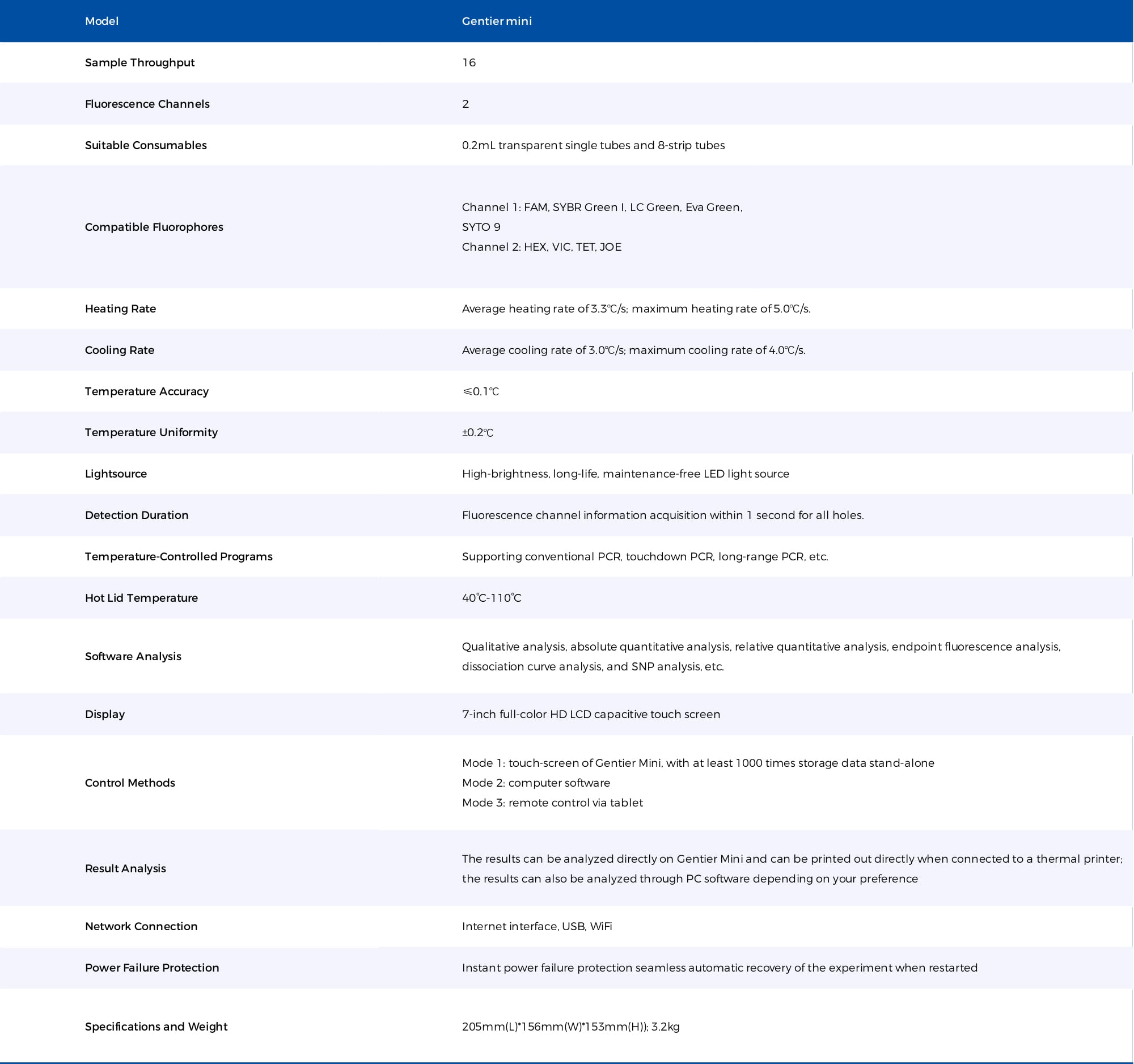

| Model | Gentier Mini |
| Sample Throughput | 16 |
| Fluorescence Channels | 2 |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes |
| Compatible Fluorophores | Channel 1: FAM, SYBR Green l, LC Green, Eva Green. SYTO 9 |
| Heating Rate | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. |
| Cooling Rate | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. |
| Temperature Accuracy | ≤0.1℃ |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Temperature-Controlled Programs | Supporting conventional PCR, touchdown PCR, long-range PCR. etc. |
| Hot Lid Temperature | 40℃-110℃ |
| Control Modes | Mode 1: touch-screen of Gentier Mini, with at least 1000 times storage data stand-alone Mode 2: computer software Mode 3: remote control via tablet |
| Result Analysis | The results can be analyzed directly on Gentier Mini and can be printed out directly when connected to a thermal printer; the results can also be analyzed through PC software depending on your preference |
| Network Connection | Internet interface, USB, WiFi |
| Power Failure Protection | Instant power failure protection seamless automatic recovery of the experiment when restarted |
| Specifications and Weight | 205mm(L)*156mm(W)*153mm(H) ; 3.2kg |
| Certificate | IVDR CE |
| Specification | |
|---|---|
| Model | Gentier Mini |
| Sample Throughput | 16 |
| Fluorescence Channels | 2 |
| Suitable Consumables | 0.2mL transparent single tubes and 8-strip tubes |
| Compatible Fluorophores | Channel 1: FAM, SYBR Green l, LC Green, Eva Green. SYTO 9 |
| Heating Rate | Average heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s. |
| Cooling Rate | Average cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s. |
| Temperature Accuracy | ≤0.1℃ |
| Lightsource | High-brightness, long-life, maintenance-free LED light source |
| Temperature-Controlled Programs | Supporting conventional PCR, touchdown PCR, long-range PCR. etc. |
| Hot Lid Temperature | 40℃-110℃ |
| Control Modes | Mode 1: touch-screen of Gentier Mini, with at least 1000 times storage data stand-alone Mode 2: computer software Mode 3: remote control via tablet |
| Result Analysis | The results can be analyzed directly on Gentier Mini and can be printed out directly when connected to a thermal printer; the results can also be analyzed through PC software depending on your preference |
| Network Connection | Internet interface, USB, WiFi |
| Power Failure Protection | Instant power failure protection seamless automatic recovery of the experiment when restarted |
| Specifications and Weight | 205mm(L)*156mm(W)*153mm(H)); 3.2kg |
| Certificate | IVDR CE |
