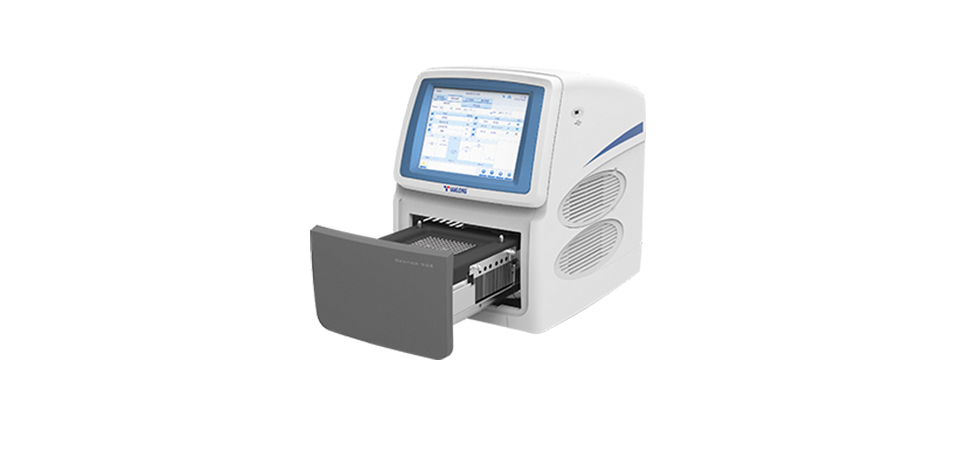

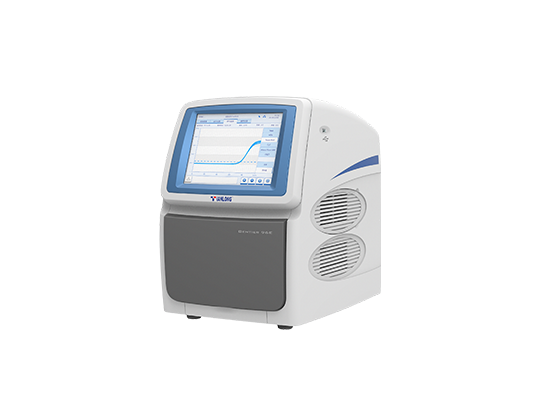

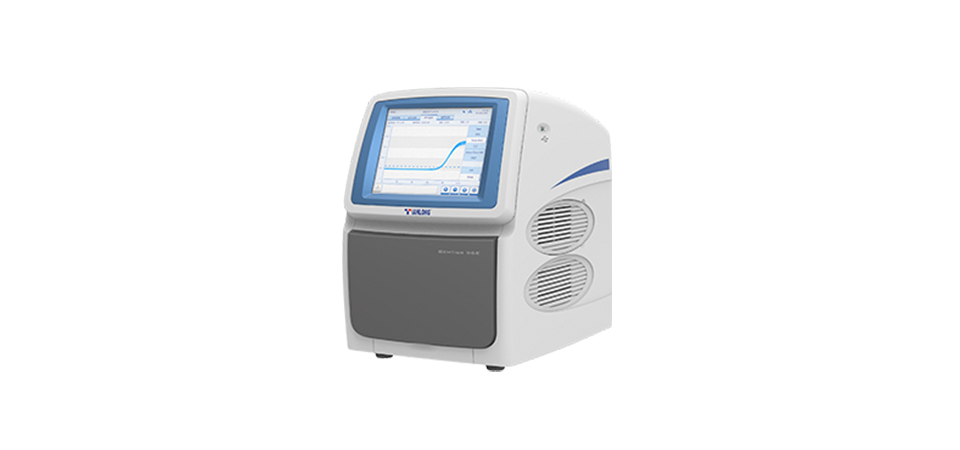

Gentier 96E Real-Time PCR System
The Tianlong Gentier 96E real-time PCR system is a PCR test machine designed to meet the specific needs of high-end laboratories. Featuring six fluorescence channels, the Gentier 96E real-time PCR system is capable of processing 96 samples in one test run. Indulge in the powerful and efficient temperature control system, easy-to-use software, and user-friendly operational designs. Tianlong Gentier 96E real-time PCR system can provide maximal reliability and efficiency for all your real-time PCR needs.

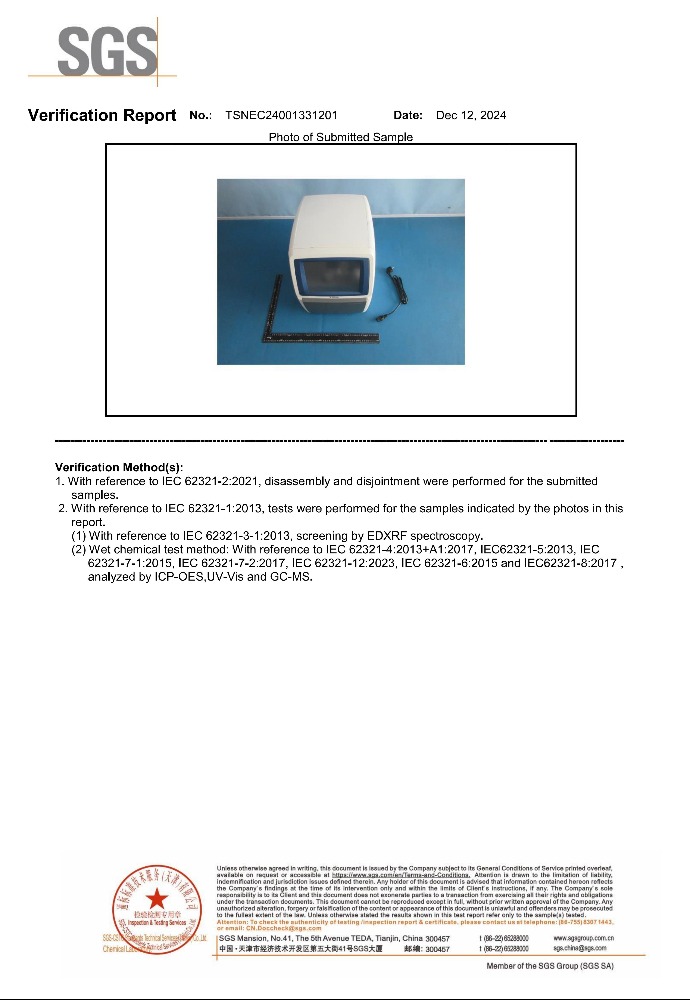

Gentier96 has completed EU RoHS testing and issued a report that this product meets environmental requirements, and occupational health requirements.
-
-
01
96 samples to be scanned in 7s: The Gentier 96E real-time PCR system can significantly reduce testing time and improve efficiency for lab professionals, as it requires only 7 seconds to complete fluorescence scanning of all 96 wells.
Efficient temperature control: Based on the Peltier heating/cooling method, the maximum heating ramp rate is >6.1℃/s and the maximum cooling ramp rate is >5.0℃/s.
Power failure protection design:
Power failure protection design can recover the experiment automatically, with no more concern about instantaneous power failure.
-
02
More convenient with two configurations Standalone configuration:10.4-inch touch screen PC control configuration: PC software control via connection.
Powerful software analysis: Gentier 96 E/R real-time PCR system offers various data analysis functions, including absolute quantitative analysis, relative quantitative analysis, SNP analysis, melting curve analysis, etc.
| Model | Gentier 96E |
| Throughput | 1- 96 |
| Fluorescence Channels | 6 |
| Fluorescence Scanning Time | 7s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: ROX, Texas Red Channel 4: Cy5 Channel 5: Alexa Fluor 680 Channel 6: FRET |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source,excitation from the top |
| Detector | Photodiodes (PDs), top scanning |
| Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm |
| Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | >6.1 ℃/s |
| Cooling Rate | >5.0 ℃/s |
| Temperature Uniformity | ±0.1 ℃ |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 12 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 Repeatability: cycle threshold (Ct) value CV≤0 0.5% |
| Software Functions | |
| Control Modes | Model 1: 10.4 inch touch screen Mode 2: PC direct control |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
| Others | |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
| Weight | 30 Kg (net) |
| Instrument Dimension | 555*475*484mm (W*L*H) |
| Suitable Consumables | 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white). |
| Certificate | IVDR CE |
| Gentier 96E | |
|---|---|
| Throughput | 1-96 |
| Fluorescence Channels | 6 |
| Fluorescence Scanning Time | 7s |
| Dye Compatibility | Channel 1: FAM, SYBR Green I , SYTO 9, Eva Green, LC Green Channel 2: HEX, VIC, TET, JOE Channel 3: ROX, Texas Red Channel 4: Cy5 Channel 5: Alexa Fluor 680 Channel 6: FRET |
| Optical System | |
| Light Source | High-brightness, long life and maintenance-free LED light source,excitation from the top |
| Detector | Photodiodes (PDs), top scanning |
| Excitation Range | CH1: 465nm CH2:527nm CH3:580nm CH4:632nm CH5:680nm CH6:465nm |
| Detection Range | CH1: 510nm CH2:563nm CH3:616nm CH4:664nm CH5:730nm CH6:616nm |
| Fluorescence Dynamic Range | Adjustable |
| Sample Dynamic Range | From 101 to 1010copies |
| Thermal Black | |
| Heating Method | Peltier |
| Heating Rate | >6.1 ℃/s |
| Cooling Rate | >5.0 ℃/s |
| Temperature Uniformity | ±0.1 ℃ |
| Temperature Accuracy | ≤0.1 ℃ |
| Gradient Range | 1℃-40 ℃ |
| Gradient Block | 12 row |
| Special Temperature Protocol | Thermal gradients PCR, long PCR, Touch Down PCR |
| Sample Testing Linearity and Repeatability | Linear correlation: /r/ ≥ 0.999 Repeatability: cycle threshold (Ct) value CV≤0 0.5% |
| Software Functions | |
| Control Modes | Model 1: 10.4 inch touch screen Mode 2: PC direct control |
| Power Failure Protection | Automatically start running experiments after power supply, no need to wait PC software |
| Data Storage and Transmission | Upload and download through USB disk. 1000 results can be stored in machine |
| Reporting Function | Templates reserved; customized experiment report |
| Key Applications | Relative quantification, absolute quantification, melting curve analysis ,SNP analysis |
| Others | |
| Operating System for PC | Win7/Win10/Win11 |
| Power Supply and Power Consumption | AC 100-240V,50-60HZ, 900VA |
| Weight | 30 Kg (net) |
| Instrument Dimension | 555*475*484mm (W*L*H) |
| Suitable Consumables | 0.2mL 96-well plates, 8-tube strips, single tubes(clear, frosted and white). |
| Certificate | IVDR CE |
